COMPACTED TRANSFORMER FOR RENEWABLE ENERGY SYSTEM

TRANSFORMERS

COMPACTED TRANSFORMER FOR RENEWABLE ENERGY SYSTEM

Product Introduction

The characteristic of new energy transformer is that the transformer body, high-voltage load switch, protective fuse and other equipment are designed in a unified manner and placed in the same closed oil tank. The insulating oil of the transformer is used as the insulation and heat dissipation medium of the entire product. The oil tank adopts a fully sealed structure, which has the advantages of small size, light weight and easy installation. The product can be equipped with low-voltage power distribution, metering, and compensation devices as needed. This series of products is widely used in residential areas, public places, industrial and mining enterprises, wind power generation, photovoltaic power generation and other occasions.

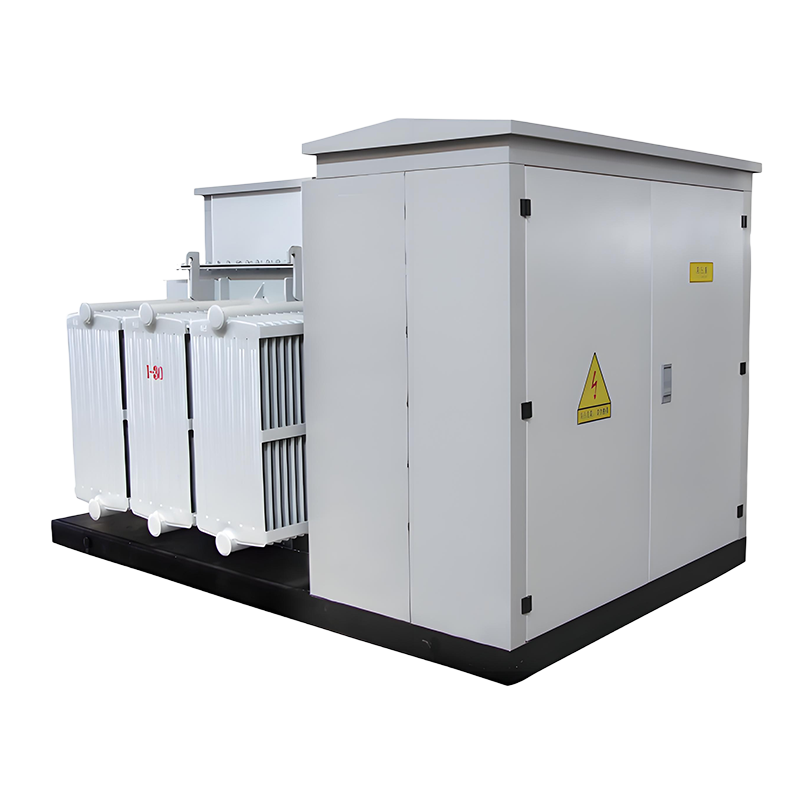

Product Image

COMPACTED TRANSFORMER FOR RENEWABLE ENERGY SYSTEM0

Quick access

Product Brochure

Product Manual

Rated capacity kVA	Grade 1 - Electrical Steel Tape	Level 1 - Amorphous Alloys	Level 2 - Electrical Steel Tape	Level 2 - Amorphous Alloys	Grade 3 - Electrical Steel Tape	Level 3 - Amorphous Alloys	Short circuit impedance %
	No-load loss W	Load loss W	No-load loss W	Load loss W	No-load loss W	Load loss W	No-load loss W
		Dyn11/yn11	Yyn0		Dyn11/yn11	Yyn0
30	65	455	430	25	510	480	70
50	80	655	625	35	735	700	90
63	90	785	745	40	880	840	100
80	105	945	900	50	1060	1010	115
100	120	1140	1080	60	1270	1215	135
125	135	1360	1295	70	1530	1450	150
160	160	1665	1585	80	1870	1780	180
200	190	1970	1870	95	2210	2100	215
250	230	2300	2195	110	2590	2470	260
315	270	2760	2630	135	3100	2950	305
400	330	3250	3095	160	3660	3480	370
500	385	3900	3710	190	4380	4170	430
630	460	4460		250	5020		510
800	560	5400		300	6075		630
1000	665	7415		360	8340		745
1250	780	8640		425	9720		870
1600	940	10440		500	11745		1050
2000	1085	13180		550	14000		1225
2500	1280	13360		670	15450		1440
Performance Level	S22		SH25		S20		SH21
