DC EV CHARGER

Product Introduction

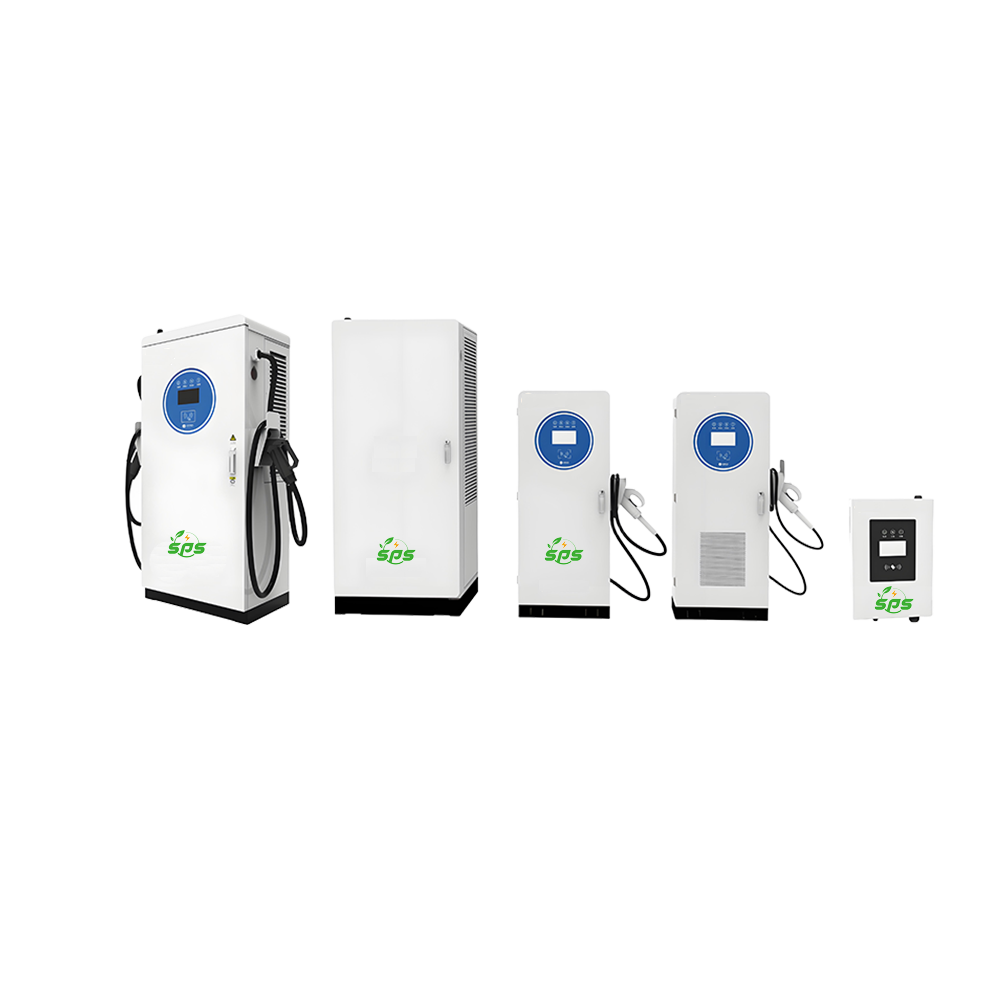

KE-6720 DC charger is a new energy electric vehicle fast charging device independently developed by our company. It can safely, efficiently, quickly and reasonably supply electric energy to electric vehicle power batteries. It is widely used in enterprises, institutions, public transportation, public parking lots, large shopping malls, logistics and other places.

Product Image

Quick access

Product Brochure

Product Manual

Product Model	KE-6720-B1000V	KE-6720-L1000V	KE-6720-F1000V	KE-6720-F1000V	KE-6720-F1000V
Structure Type	Wall-mounted	Integrated	Standard Split	Liquid-cooled Split	Independent Air Duct
Rated Voltage Range			AC380V±15%
Rated Input Frequency			50±1Hz
Rated Output Voltage			200 - 1000VDC
Maximum Output Power	20kW	30 - 360kW	160 - 1000kW	480 - 1000kW
Voltage Regulation Accuracy			≤±0.5%
Current Regulation Accuracy			≤±0.5%
Efficiency			≥95%
Power Factor			≥0.98 (above 50% load)
Harmonic Content THD			≤5% (above 50% load)
Protection Functions			Input Overvoltage/Undervoltage, Output Overvoltage, Short Circuit, Insulation Grounding, Battery Reverse Connection, Emergency Stop
Cooling Method			Forced Air Cooling		Independent Air Duct
Number of Charging Guns	1	1/2	2 Terminals/4 Terminals/6 Terminals/10 Terminals (1/2)
Maximum Current per Gun	63A	125/200/250A	250A	250A Air-cooled/400A Liquid-cooled/600A Liquid-cooled
Communication Method			RS485/4G/Ethernet/CAN
Protection Class			IP54
Operating Temperature			-25℃ - +55℃
