Product Introduction

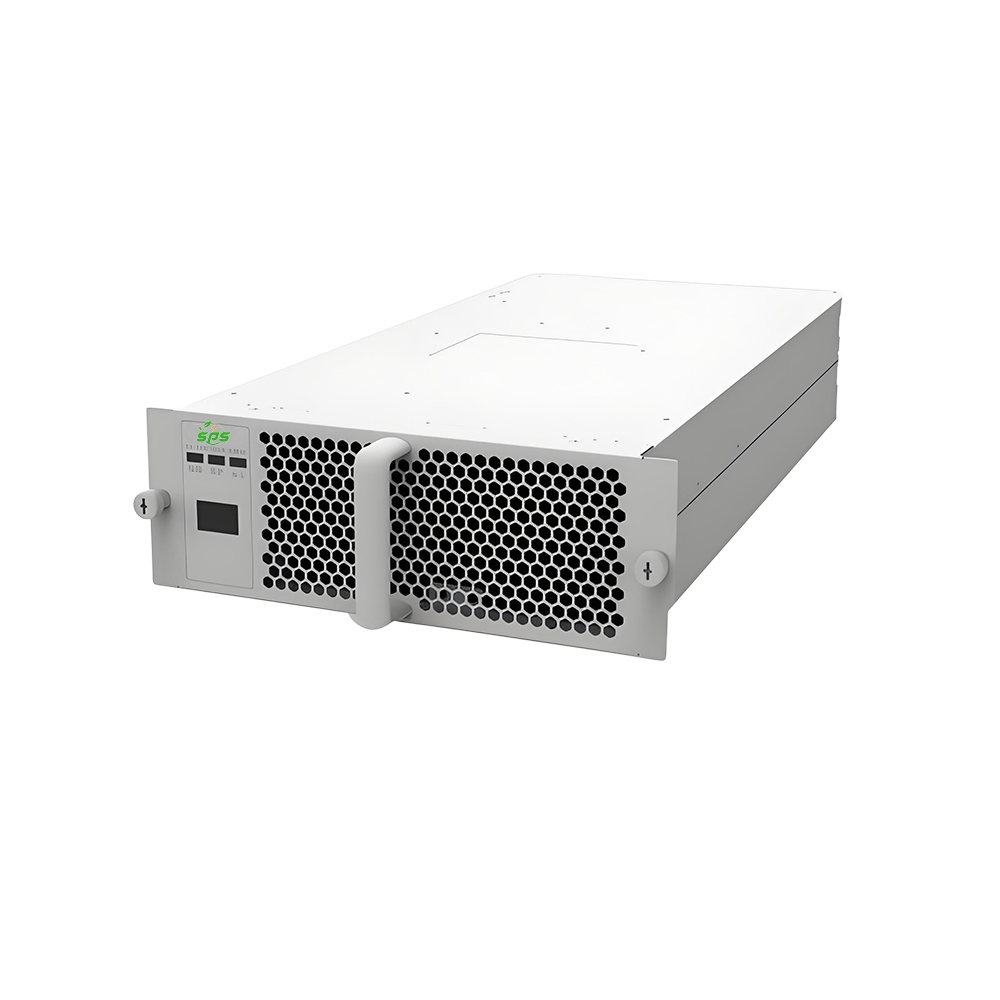

The KE-EVR1K070 high-frequency charging module is an essential module in the DC charger of new energy electric vehicles. It can convert AC power into DC power and provide safe, efficient, fast and reasonable power supply to the power battery of electric vehicles.

Product Image

Quick access

Product Brochure

Product Manual

Product Model	KE-EVR1K070
AC Working Voltage Range	AC380V±30%
AC Input Power Frequency	50Hz±1Hz
Power Factor	≥0.95 (below 50% load); ≥0.98 (above 50% load)
Harmonic Current Limit	≤5% (above 50% load)
Output Voltage Range	200 - 1000Vdc
Rated Output Power	20kW
Rated Output Current	73A
Voltage Regulation Accuracy	≤±0.5%
Current Regulation Accuracy	≤±0.5%
Voltage Ripple Factor	≤±1%
Protection Characteristics	Input under - voltage protection, input over - voltage protection, input phase - loss protection, input over - current protection, input lightning protection, output over - voltage protection, output over - current protection, over - temperature protection, emergency stop protection, fan failure protection, grounding protection resistance
Enclosure Protection Class	IP20
Noise	≤60dB
Heat Dissipation Method	Air - cooled, front air intake, rear air exhaust
Communication Method	1 channel, CAN2.0B, 125kbps, electrical isolation
Overall Dimensions (mm) (Width x Height x Depth)	248 (W) x 84 (H) x 461.2 (D, without handle); 248 (W) x 84 (H) x 487.2 (D, with handle)
