KYN61-40.5 AC Metal-clad Withdrawable Switchgear

SMART GRID

KYN61-40.5 AC Metal-clad Withdrawable Switchgear

Product Introduction

KYN61-40.5 AC metal-clad withdrawable switchgear (hereinafter referred toas switchgear) is three-phase AC, 50Hz, rated voltage 40.5kV indoor powerdistribution device. lt is used for power plants, substations and industrial andmining enterprises to receive and distribute electricity, it can control, protectand detect circuits, and can also be used in places with frequent operations.

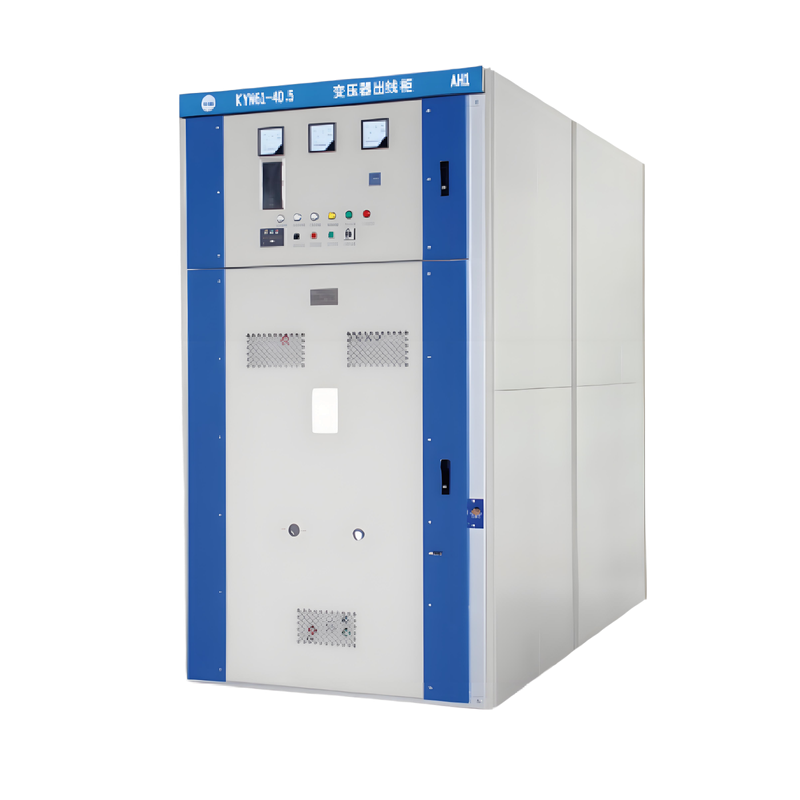

Product Image

KYN61-40.5 AC Metal-clad Withdrawable Switchgear0

Quick access

Product Brochure

Product Manual

Description	Unit	Value
Rated voltage	KV	40.5
Rated current	A	1250 1600 2000 2500
Rated power	HZ	50
Rated short-time withstand current	KA	20 25 31.5
Rated peak withstand current	KA	50 63 80
Rated power frequency withstand current	KV	95 /1min
Rated lightning impulse withstand current	KV	185
Rated short-time short-circuit duration	S	4
Protection grade		IP4X/IP65

Description	Unit	Value
Rated voltage	kV	40.5
Rated frequency	HZ	50
Rated power frequency withstand voltage	kV	95 / 1min
Rated lightning impulse withstand voltage	kV	185
Rated current	A	1250 1600 2000
Rated short-time withstand current	KA	20 25 31.5
Rated short-circuit making current	KA	20 25 31.5
Rated peak withstand current	KA	50 63 80
Rated short circuit duration	ms	30≤t≤60
Closing time	s	50≤t≤100
Rated short-circuit current breaking	Times	30
Mechanical life	Times	10000
