KYN28A-12(GZS1)AC Metal-clad Withdrawable Switchgear

SMART GRID

KYN28A-12(GZS1)AC Metal-clad Withdrawable Switchgear

Product Introduction

KYN281-12(GZS1) AC metal-clad withdrawable switchgear (hereinafter referred toas switchgear)is a complete power distribution device for three-phase AC 50Hzsingle busbar and single busbar sectional system, mainly used in power plants,small and medium generator power transmission, power distribution of industrialand mining enterprise, power transformation, transmission of substation and largeHV motor starts to achieve the purpose of control, protection and monitoring.

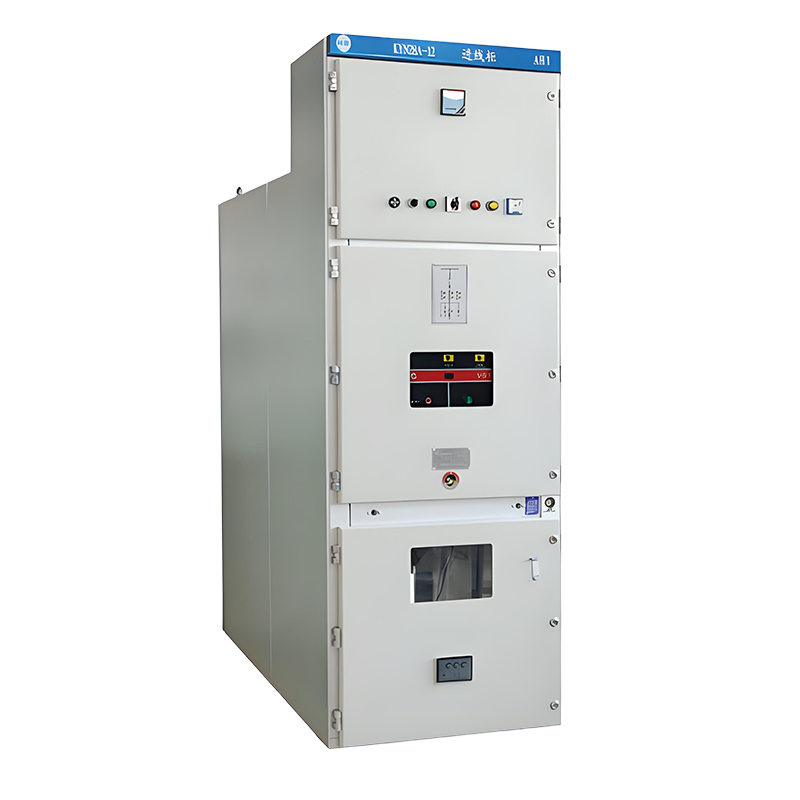

Product Image

KYN28A-12(GZS1)AC Metal-clad Withdrawable Switchgear0

Quick access

Product Brochure

Product Manual

ltem		Unit	Data
Rated voltage		kV	3.6,7.2, 12
Rated insulation level	1min power frequency withstand voltage	kV	42
Rated insulation level	ightning impulsewithstand ivoltage	kV	75
Rated frequency		HZ	50
Main busbar rated current		A	630,1250,1600,2000,2500,3150,4000
Branch busbar rated current		A	630,1250,1600,2000,2500,3150,4000*
4s thermal stable current(rms)		KA	16，20，25，31.5，40，50
Rated dynamic current(Peak value)		KA	40，50，63，80，100，125
Protection class		IP4X/IP65

ltem		Unit	Data
Rated voltage		kV	3.6,7.2, 12
Rated insulation level	1min power frequency withstand voltage	kV	42
Rated insulation level	Lightning impulsewithstand voltage	kV	75
Rated frequency		HZ	50
Rated current		A	630,1250,1600,2000,2500,3150,4000
Rated short circuit breaking capacity		KA	16,20,25, 31.5,40,50
4s thermal stable current(rms)		KA	16,20,25, 31.5,40,50
Rated dynamic current(Peak value)		KA	40,50,63,80,100,125
