New energy intelligent step-up transformer (European and Chinese style)

Product Introduction

YB(H)-40.5/0.4KV~1.14KV new energy intelligent booster transformer (European/Chinese style) is a product specially designed and developed by our company for the photovoltaic and wind power generation fields. The photovoltaic inverter outlet voltage is usually 0.4~0.8kV, and the wind turbine outlet voltage is usually 0.69~1.14KV. It is boosted to 35kV by the prefabricated substation and then transmitted to the 35/110(220)KV booster station by the 35kV cable line to achieve power generation and grid connection.

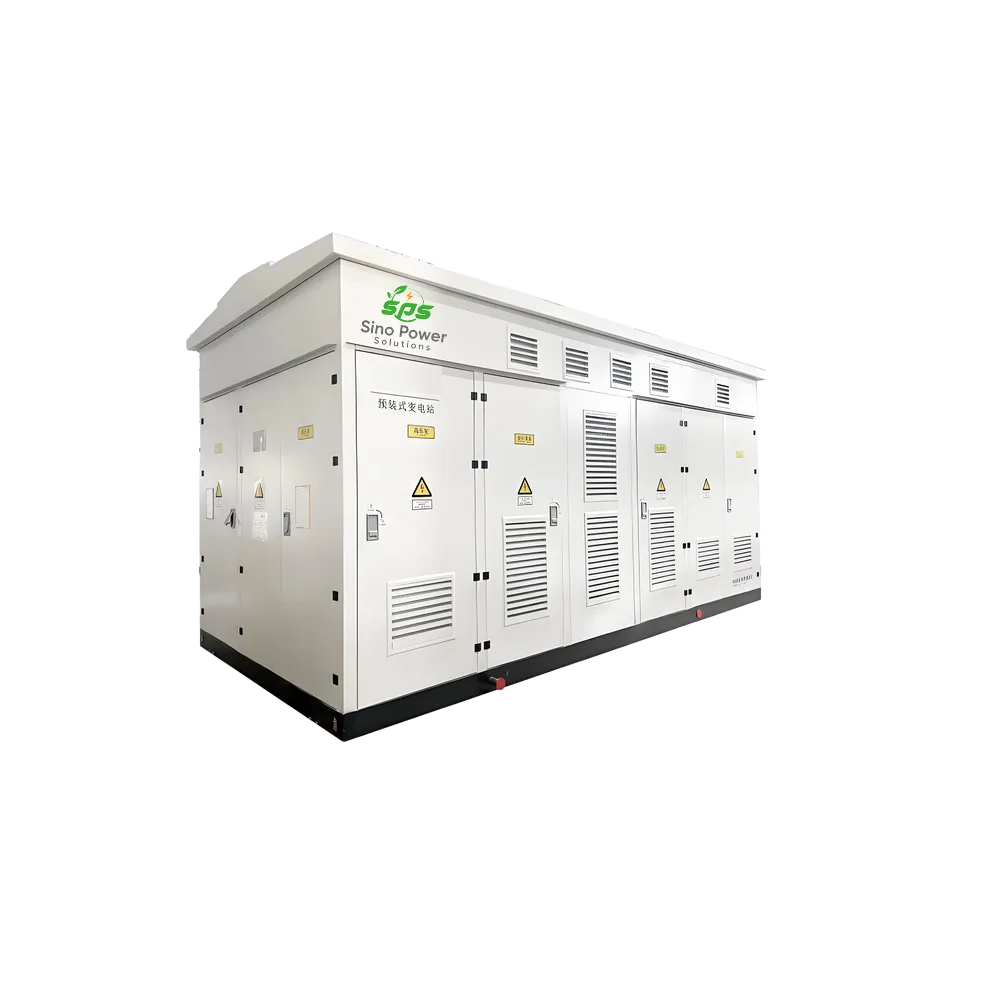

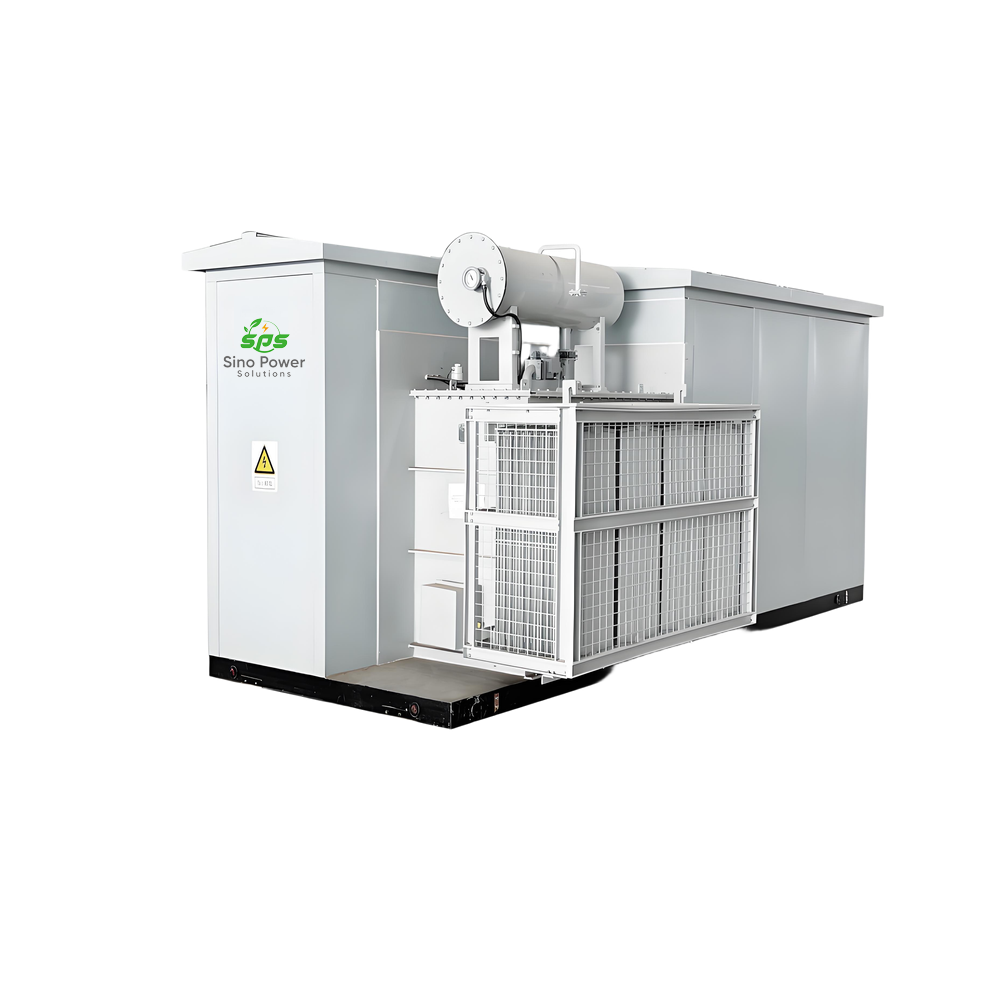

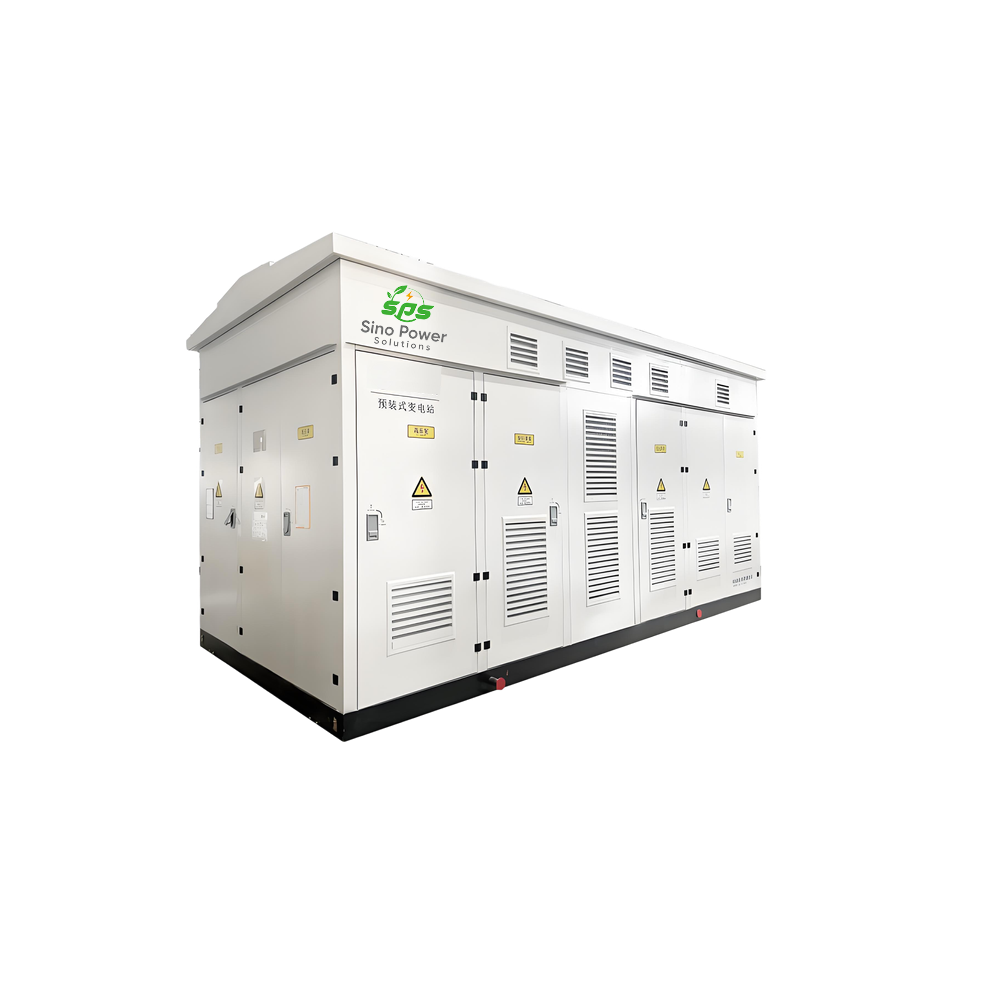

Product Image

New energy intelligent step-up transformer (European and Chinese style)0

New energy intelligent step-up transformer (European and Chinese style)1

Quick access

Product Brochure

Product Manual

Related Products

Features

/ 002

With 24-way rumor message input;

With 4-way DC input, it can collect transformer oil temperature and ambient temperature inside the box transformer;

With AC sampling function, it can measure remote measurements such as 1, U, P, O, F, COSФ, active energy, reactive energy, etc.

The electrical quantity protection functions include: transformer differential quick-break protection, secondary harmonic braking ratio differential protection, high-voltage side three-stage time-limited overcurrent protection with re-voltage locking, low-voltage side three-stage time-limited overcurrent protection, zero-sequence overcurrent protection, overload alarm, overvoltage protection, undervoltage protection, differential current over-limit alarm, TV disconnection alarm, TA disconnection alarm, etc.

Non-electrical protection functions include: transformer heavy gas protection, light gas protection, pressure release protection, temperature protection, oil level protection, etc.;

The following switch states can be collected: 35kV load switch position signal, low voltage side circuit breaker position signal, high and low voltage near and remote control switching signal, circuit breaker position signal, fuse blown signal, circuit breaker trip signal, box-type substation door open/close signal, etc.;

Remote control function: remotely control the opening and closing of switches with electric control function

It has perfect event report processing function and operation record function, and can save at least the latest 25 SOE change records and the latest 25 user operation records;

With communication function, the device communication protocol adopts the standard IEC103/104 protocol, which can be easily connected to the integrated automation system of various manufacturers, and the communication protocol will eventually match the integrated automation manufacturer's protocol;

All components including power supply, CPU, IO board and communication board meet the wide temperature range of -40℃~+70℃ and the device can ensure normal operation to meet the special environment of wind farms/photovoltaic power stations.

Product Parameters

/ 003

Rated voltage on high - voltage side	Rated Voltage on High - voltage Side: 40.5kV
Rated voltage on low - voltage side	Rated Voltage on Low - voltage Side: 0.4kV~1.14kV
Rated frequency	Rated Frequency: 50Hz
Protection class of cabinet	Protection Class of Cabinet: Oil Tank IP68, Low - voltage Chamber IP54, High - voltage Chamber IP54
Transformer model	Transformer Model: SCB Series, S□ - M Series
Rated capacity	Rated Capacity: 500~10000kVA
Rated voltage	Rated Voltage: High - voltage 35/37/38.5/40.5kV, Low - voltage 0.4/0.69/0.8/1.14kV
High - voltage switch unit	High - voltage Switch Unit: FZ(R)N - 40.5D Series Indoor AC High - voltage Vacuum Load Switch or Vacuum Circuit Breaker
High - voltage current - limiting protection fuse protection	High - voltage Current - limiting Protection Fuse Protection: XRNT - 40.5; If the transformer capacity is too large and exceeds the protection range of the fuse, it is recommended to adopt the vacuum circuit breaker + microcomputer protection scheme
Low - voltage unit	Low - voltage Unit: Equipped with low - temperature - resistant intelligent frame circuit breakers, which can realize over - current protection, grounding protection, remote signaling and remote control; SG Series Dry - type Transformers cooperate with UPS to provide uninterrupted power supply for the auxiliary system and intelligent monitoring system
Cabinet	Cabinet: Made of single - layer cold - rolled steel plate with thickness ≥2.0mm
