YB port-series prefabricated box-type substation

Product Introduction

This series of prefabricated substations are suitable for 12KV, 50Hz three-phase AC systems, and are configured with a capacity of 2500KVA or less in residential areas, commercial buildings, hotels, large construction sites, high-rise buildings, industrial and mining enterprises, and temporary construction sites. They are suitable for ring network power supply and radial terminal power supply.

Product Image

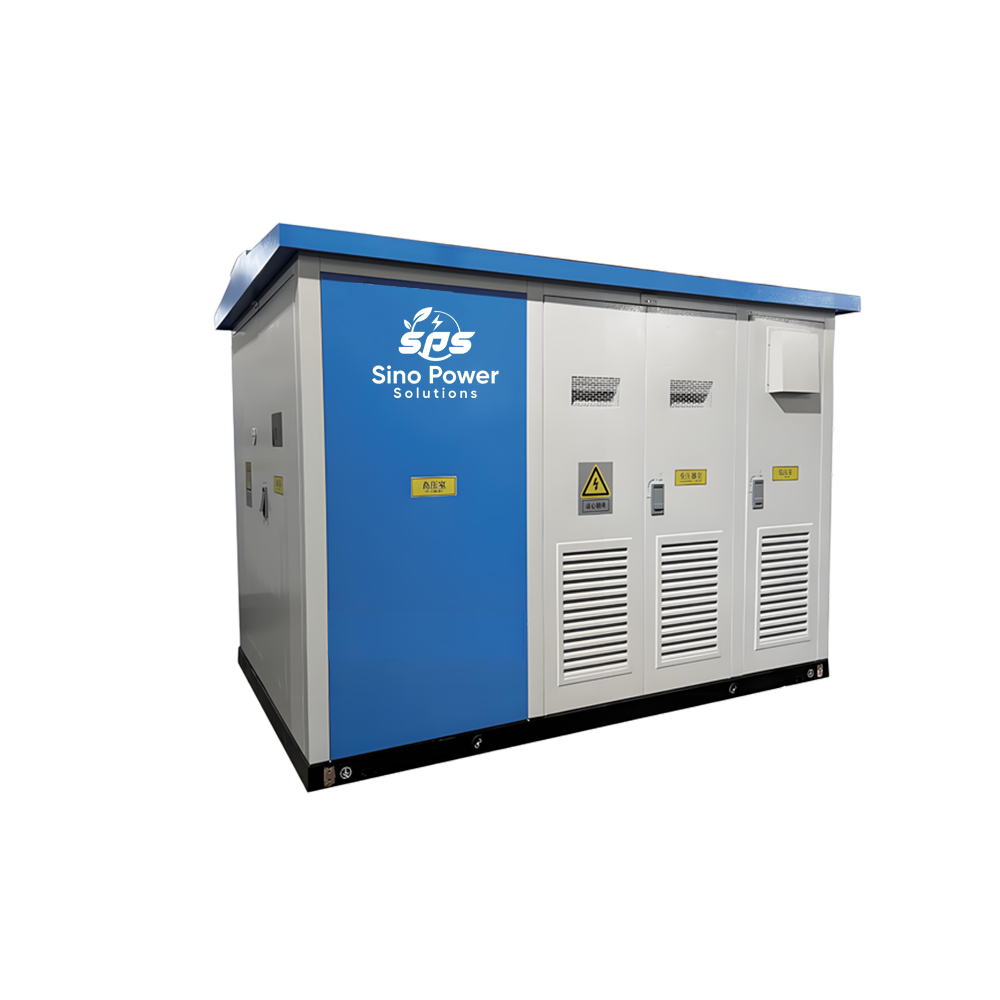

YB port-series prefabricated box-type substation0

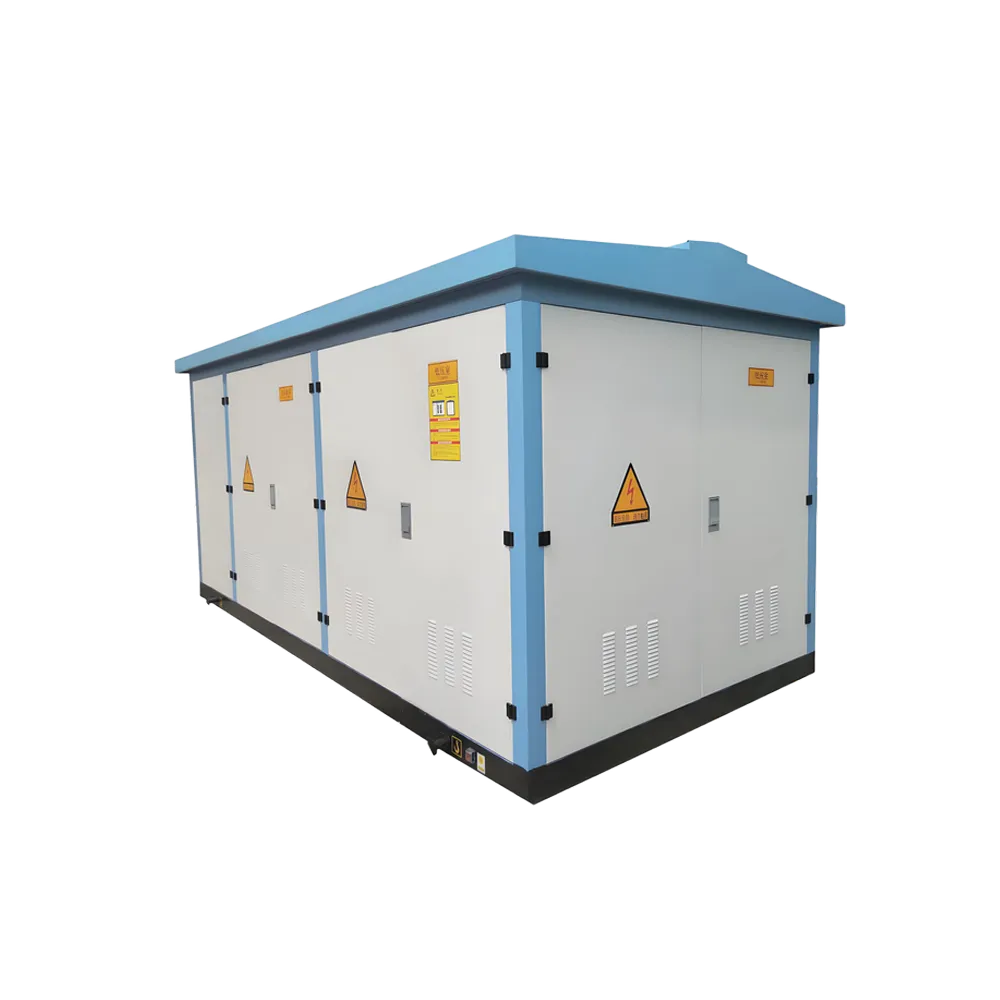

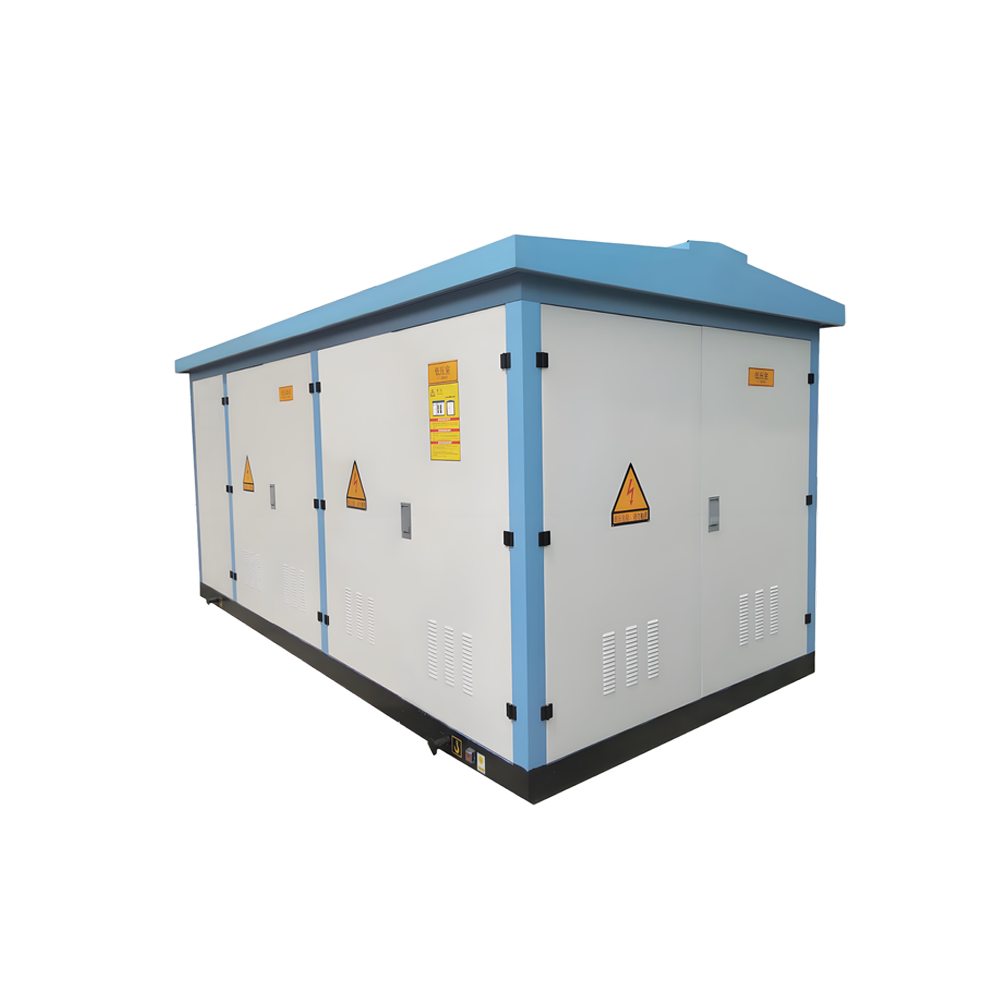

YB port-series prefabricated box-type substation1

Quick access

Product Brochure

Product Manual

Unit	Name	Unit	Parameter
High-voltage Part	Rated Voltage	kV	7.2/12
High-voltage Part	Rated Frequency	Hz	50
High-voltage Part	Rated Current	A	6.2 - 1250
High-voltage Part	Rated Power Frequency Withstand Voltage for 1min - To Ground	kV	42
High-voltage Part	Rated Power Frequency Withstand Voltage for 1min - Break	kV	48
High-voltage Part	Rated Lightning Impulse Withstand Voltage Peak - To Ground	kV	75
High-voltage Part	Rated Lightning Impulse Withstand Voltage Peak - Break	kV	85
High-voltage Part	Rated Short-time Withstand Current and Duration	kA/s	31.5/4
Transformer Part	Model	-	S13/S20/SH15/SCB, etc.
Transformer Part	Rated Capacity	kVA	30 - 2500
Transformer Part	Rated Voltage of High-voltage Winding	kV	10/10.5
Transformer Part	Rated Voltage of Low-voltage Winding	kV	0.4/0.69
Transformer Part	Tap Range	-	±2×2.5%/±5%
Transformer Part	Connection Group	-	D,yn11/Y,yn0
Low-voltage Part	Rated Current	A	50 - 5000
Low-voltage Part	Rated Working Voltage	V	400/690
Low-voltage Part	Rated Insulation Voltage	V	690
Low-voltage Part	Branch Current	A	10 - 1250
Low-voltage Part	Rated Operational Short-circuit Breaking Capacity	kA	50
Cabinet Part	Cabinet Temperature Rise	K	10
Cabinet Part	Protection Class	-	IP54
Cabinet Part	Noise Level	dB	≤45
