YZB(C)-Port Prefabricated substation (prefabricated cabin)

SMART GRID

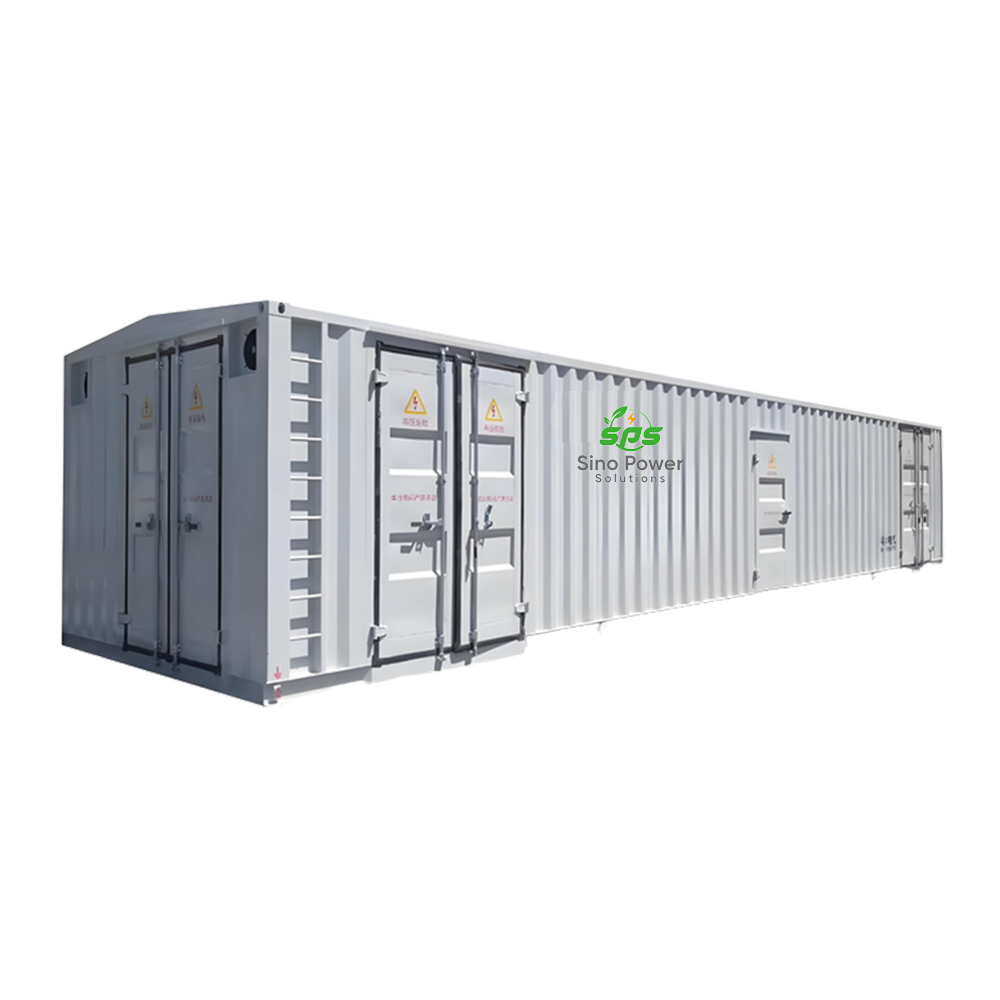

YZB(C)-Port Prefabricated substation (prefabricated cabin)

Product Introduction

In order to adapt to the modular construction concept of smart substations, follow the principle of coordination and unification of "safety, applicability, versatility, and economy", follow the idea of "standardized design, factory processing, and prefabricated construction", and combine the universal design "two types and one standardization" and full life cycle design and other standardized construction, the prefabricated cabin substation developed is also called the power container E-House. This product can quickly and flexibly support reliable power supply in any power consumption occasion. It provides users with plug-and-play customized power supply solutions, covering all aspects from preliminary planning, engineering design to installation and commissioning guidance.

Product Image

YZB(C)-Port Prefabricated substation (prefabricated cabin)0

Quick access

Product Brochure

Product Manual

Related Products

Features

/ 002

Features of prefabricated cabin

When the cabin is extra long or extra wide, a multi-module combination is adopted. The splicing units adopt a steel structure system, and temporary supporting columns are added at the splicing sections. At the same time, inclined auxiliary supports are used to increase the strength of the temporary supporting surface to ensure that the splicing units will not produce permanent deformation, cracking or covering parts falling off during lifting, transportation and installation.

Cabin anti-corrosion characteristics

After shot blasting and sand blasting to remove rust, the prefabricated cabin steel components are treated with anti-corrosion treatment (epoxy zinc-rich primer, micaceous iron intermediate paint, polyurethane topcoat, total dry film thickness>160 um, anti-corrosion level meets C4 level). The welding between the structural parts is full, the weld width is uniform, the weld is straight and regular, and the slag is removed and the paint is touched up after welding to achieve the anti-corrosion and anti-rust effect, without defects such as false welding, leaking welding, and pores.

Cabin cold-resistant and heat-insulating features

The prefabricated cabin body adopts a three-layer metal structure and uses "refrigerator" insulation measures and processes: double-layer high-quality steel plates (the internal filling uses polyurethane fireproof insulation materials approved by the Ministry of Construction to ensure the insulation and fireproof performance of the entire prefabricated cabin) + environmentally friendly metal decoration layer; the thickness of the door panel is not less than 50mm to ensure the "24 wall" insulation effect;

Decorative features

The preferred material for interior walls is rock wool composite board, and the interior decorative surface is pure white (if there are special color requirements, please refer to the drawing instructions); ensure that the surface of the decorative wall is flat, beautiful, and the joints are neat, without scratches, nail caps, glue stains, etc., and the gap is no larger than 2mm. All kinds of components are installed tightly without exposed wires.

Appearance Features

The cabin surface is smooth, without cracks, scars, delamination, burrs, and uniform color; the facade is usually in the form of corrugated board, the top is a flat steel plate, the whole body is white (color code RAL9010), the company logo is sprayed locally, and the cabin function name is printed in the middle of the facade. The external facade footing is set to black with reflective markings (the height is based on the height of the lower channel steel).

Product Parameters

/ 003

Item	Parameter
Protection Class of Prefabricated Cabin	Not lower than IP55
Fire Resistance Rating of the Cabin	Not less than 1.5h
Load - bearing Capacity of the Cabin	Live load on the ground: 8kN/m²; Live load on non - accessible roof: 0.5kN/m²; The maximum snow pressure can meet the local snow load value
Anti - corrosion Requirement of the Cabin	Adopt effective anti - corrosion measures according to the on - site environment of use
Target Temperature for Internal Environment Control of the Cabin	10℃ - 30℃ (when unoccupied); 18℃ - 25℃ (when occupied)
Relative Humidity inside the Cabin	Not more than 75%, no condensation under any circumstances
Noise of Air - conditioner inside the Cabin	＜55dB
Service Life of the Cabin	Not less than 40 years
Primary equipment rating
Rated voltage	≤126kV
Rated current	≤4000A
Rated short-circuit breaking current	≤40kA
Rated frequency	50Hz
Secondary equipment ratings
Rated AC voltage	AC220V
Rated DC voltage	DC110V/220V
UPS voltage	AC220V
Rated frequency	50Hz
