liquid-cooled energy storage cabinet

INTELLIGENT ENERGY STORAGE

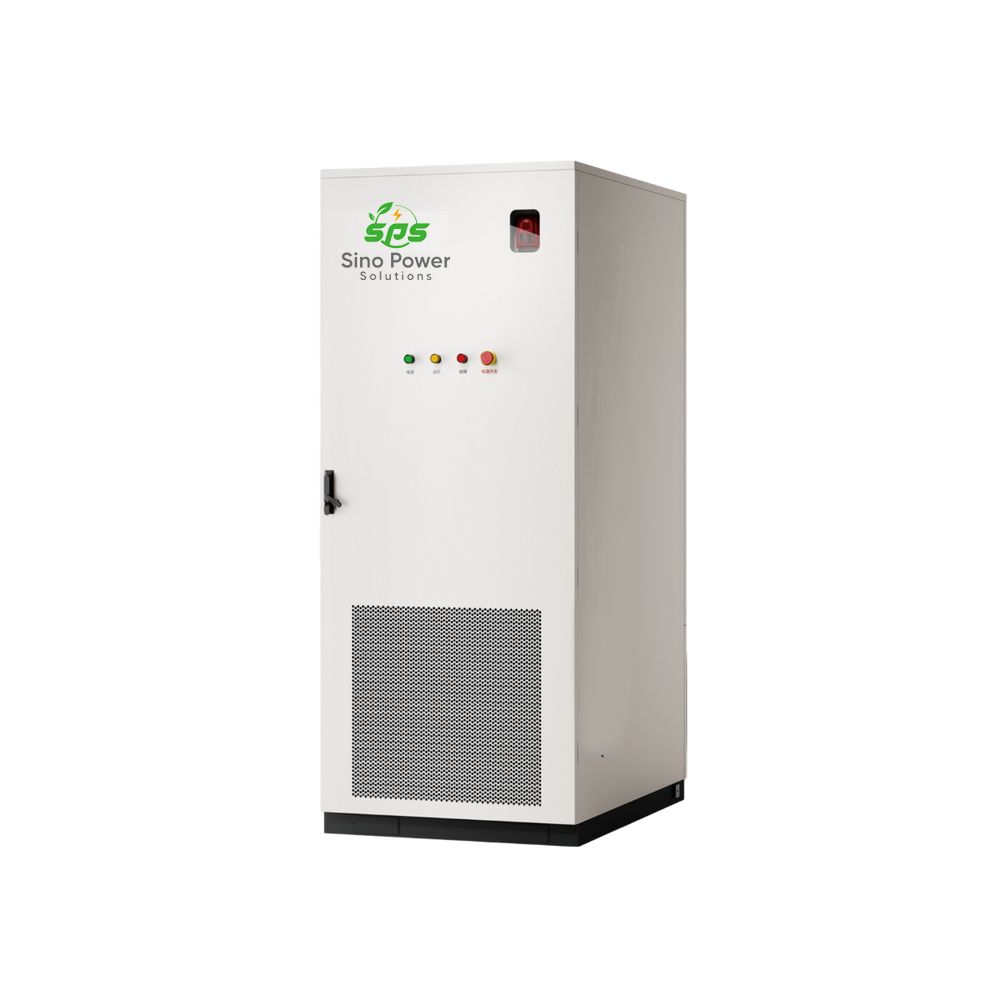

liquid-cooled energy storage cabinet

Product Introduction

It has full-scenario coverage, ultimate security, modular and flexible expansion, AI intelligent management and global ecological advantages.

Product Image

Quick access

Product Brochure

Product Manual

Product Model	KE-5100-135kW/261kWh
Cell selection	314Ah (lithium iron phosphate square aluminum shell)
Battery grouping method	1P260S
Maximum voltage range(Vdc)	650~950
Discharge Depth	5%~95% DOD
Cycle life	≥8000 times (25°C, 0.5C, 70% EOL)
Grid connection method	3W+N/3W
Rated output voltage(Vac)	400
Rated output power (kW)	135
Maximum output power (kVA)	162
Rated frequency(Hz)	50/60
Power Factor	-1~+1
Operation Mode	PQ, VSG, VF (optional)
Working environment temperature (°C)	-20~55 (derating above 45°C)
Working environment humidity (%RH)	0-90(no condensation）
Noise(dB)	≤75
Altitude (m)	≤2000:2000~4000m use with reduced rating
Thermal management form	Intelligent liquid cooling + dehumidification
Fire fighting form	Aerosol (optional perfluorocopper) + heat and smoke detector
Communication interface	RS-485/Ethemet
Protection level	IP54
Maximum system efficiency	≥90%
Dimensions (W x H x D)	100023851375mm
weight	Approx. 2700kg
