AIR COOLING BATTERY CABIN

INTELLIGENT ENERGY STORAGE

AIR COOLING BATTERY CABIN

Product Introduction

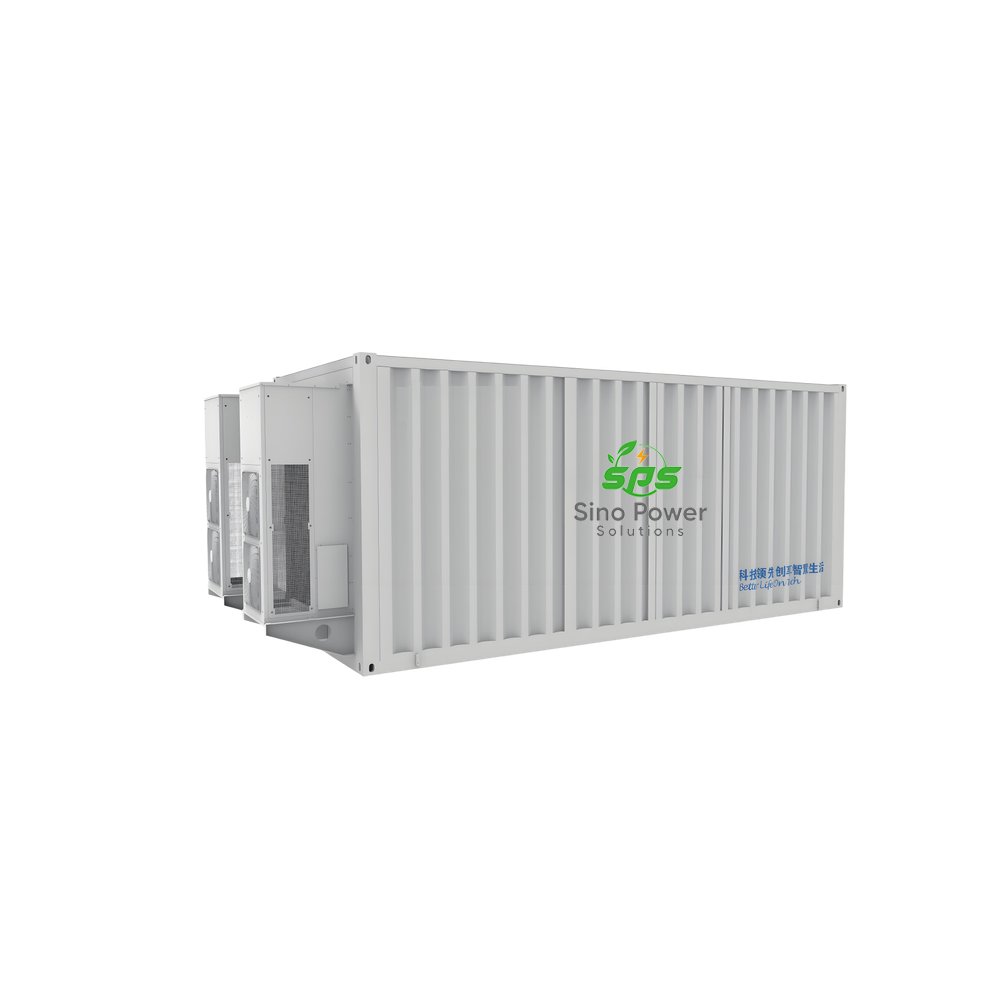

The air-cooled battery compartment is composed of a 20/40-foot customized container, which contains an air-cooled PACK, BMS battery management system, air-conditioning unit, fire protection, etc.

Product Image

Quick access

Product Brochure

Product Manual

Battery Cluster Parameters
Cell Type	LFP
Battery Pack Type	1P16S
Cell Specification	3.2V/280Ah
Rated Energy	200kWh
Cycle Life	≥6000 cycles (25°C, 0.5C, 80% EOL)
Cooling Method	Air - cooled
Air - cooled Battery Cabinet Parameters
Container Parameter	20 - foot Walk - in Type	40 - foot Walk - in Type
Rated Energy	MAX (2MWh)	MAX (4MWh)
Rated Voltage	716.8V	716.8V
Protection Class	IP54	IP54
Cooling Method	Air - cooled	Air - cooled
Dimensions (Width x Depth x Height)	650030002896mm	1250030002896mm
