DC-DC MODULAR

INTELLIGENT ENERGY STORAGE

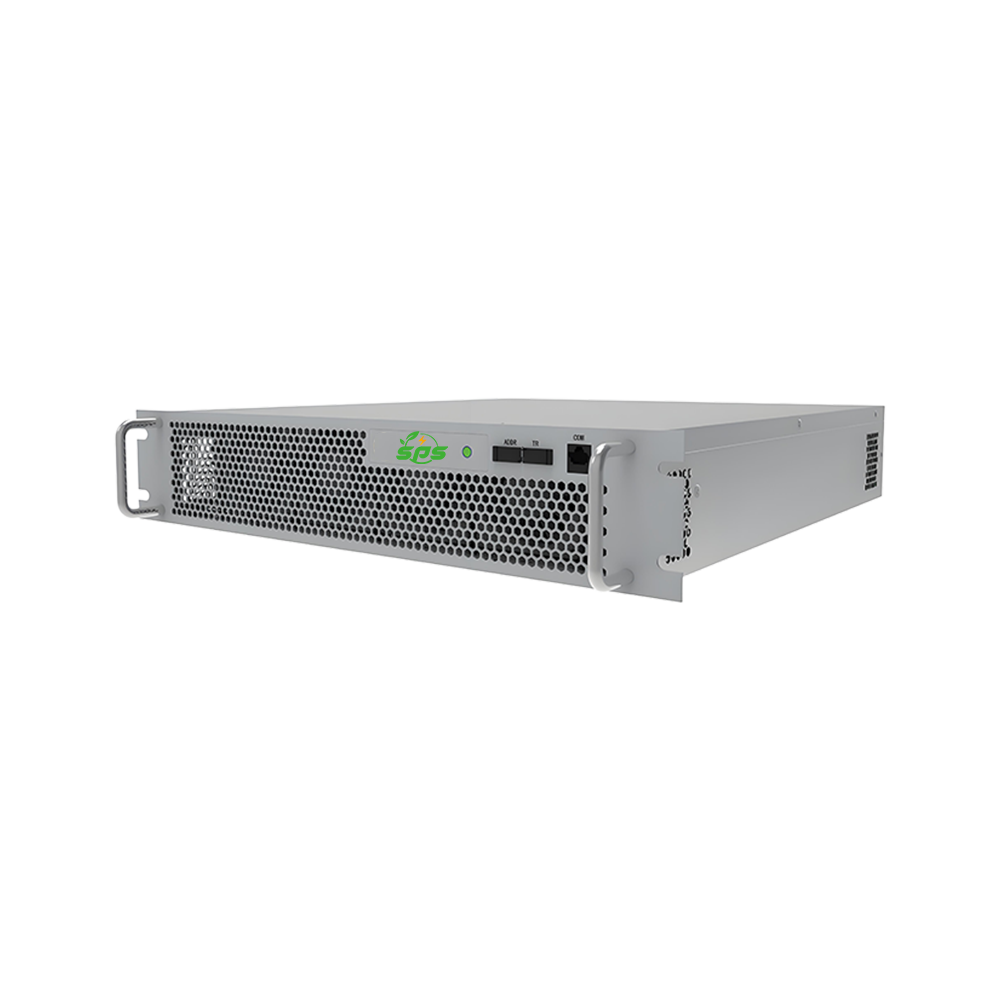

DC-DC MODULAR

Product Introduction

Product Image

Quick access

Product Brochure

Product Manual

Item	Parameter
Model	KE - 5123 - 50K
Low - voltage Side Parameters
Low - voltage Side Voltage Range	0 - 900V
Maximum Low - voltage Side Voltage	900V
Rated Low - voltage Side Voltage	600V
Maximum Low - voltage Side Current	100A
High - voltage Side Parameters
High - voltage Side Voltage Range	300 - 1000V
Rated High - voltage Side Voltage	750V
Maximum High - voltage Side Current	80A
Voltage Regulation Accuracy
Static	≤±1%
Dynamic	≤±3%
Current Regulation Accuracy
Static	≤±1%
Dynamic	≤±3%
System Parameters
Power	50kW
Overload Capacity	1.1 times (long - term), 1.2 times (1min)
Charge - discharge Switching Time	<100ms
Maximum Efficiency	98.5%
Communication Interface	RS485/CAN/DI/DO interface
Protection Class	IP20
Cooling Method	Intelligent Air Cooling
Operating Temperature	-30 - 60°C (>45°C derating)
Relative Humidity	0 - 95% (no condensation)
Altitude	3000m (>2000m derating)
Noise	<75dB
Dimension (Width×Height×Depth)	440mm×88mm×498mm
Weight	18kg
