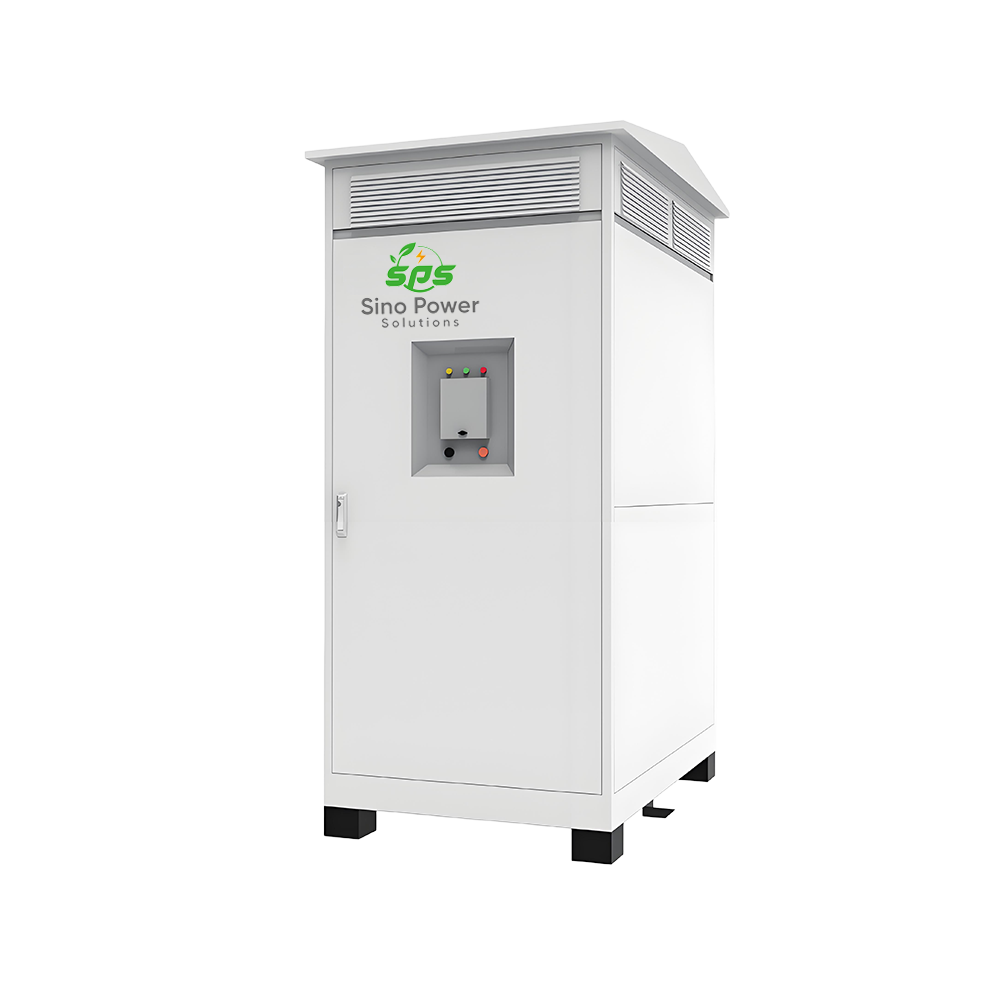

1500V THREE PHASE PCS

INTELLIGENT ENERGY STORAGE

1500V THREE PHASE PCS

Product Introduction

Product Image

Quick access

Product Brochure

Product Manual

Product Model	KE-5120-1.250MW/0.69kV	KE-5120-1.725MW/0.69kV
DC - side Parameters
Maximum DC Voltage	1500V	1500V
DC Voltage Range	1000 - 1500V	1000 - 1500V
Maximum DC Current	1403A	1936A
Number of DC Input Paths	1	1
AC - side Parameters (Grid - connected)
AC Output Power	1250kVA@45°C / 1375kVA@30°C	1725kVA@45°C / 1897kVA@30°C
Maximum AC Current	1046A@45°C / 1151A@30°C	1434A@45°C / 1587A@30°C
Rated AC Voltage	690V	690V
AC Voltage Range	586.5 - 759V	586.5 - 759V
Rated Grid Frequency	50Hz/60Hz	50Hz/60Hz
AC Current Harmonics	<1.5% (rated power)	<1.5% (rated power)
Power Factor	>0.99 (>20% load)	>0.99 (>20% load)
Reactive Power Adjustable Range	-1~+1	-1~+1
AC - side Parameters (Off - grid)
Rated AC Voltage	690V	690V
AC Voltage Range	586.5 - 759V	586.5 - 759V
AC Voltage Harmonics	<3% (linear load)	<3% (linear load)
Unbalanced Load Capacity	1 0 0%	1 0 0%
Rated Output Frequency	50Hz/60Hz	50Hz/60Hz
System Parameters
Isolation Type	Transformerless Isolation	Transformerless Isolation
Maximum Efficiency	99%	99%
Protection Class	IP55	IP55
Operating Temperature Range	-35~+60°C (+45°C derated operation)	-35~+60°C (+45°C derated operation)
Allowable Humidity Range	0~1 0 0% (no condensation)	0~1 0 0% (no condensation)
Altitude	5000m (>2000m derated)	5000m (>2000m derated)
Cooling Method	Intelligent Forced Air Cooling	Intelligent Forced Air Cooling
Communication Interfaces	RS485, CAN, Ethernet	RS485, CAN, Ethernet
Dimensions (Width x Depth x Height)	1000x2400x1500mm	1000x2400x1500mm
Weight	Approx. 1500kg	Approx. 1500kg
