Home

Products

AIR-COOLED PACK

INTELLIGENT ENERGY STORAGE

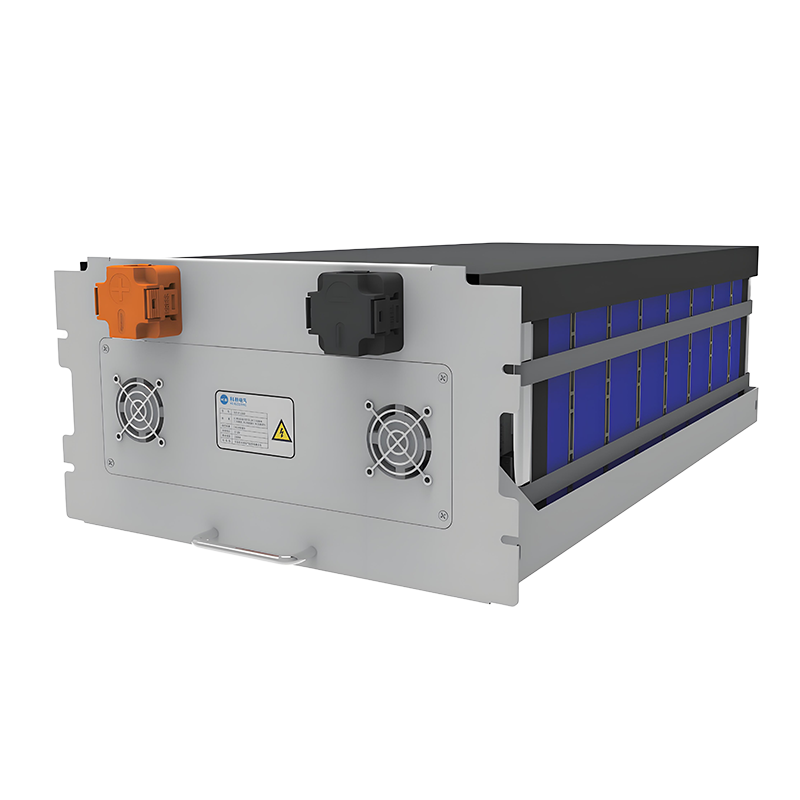

AIR-COOLED PACK

Product Introduction

Product Image

Quick access

Product Brochure

Product Manual

Item	Parameter/Configuration
Product Model	16S1P - L280	14S1P - L280
Combination Mode	16S1P	14S1P
Cell Used	Prismatic Aluminum - shell LFP - 280Ah	Prismatic Aluminum - shell LFP - 280Ah
Charge - discharge Rate	0.5C	0.5C
Rated Energy	14.336kWh	12.544kWh
Nominal Voltage	51.2V	44.8V
Operating Voltage Range	44.8 - 57.6V	39.2 - 50.4V
Dimension (Width×Height×Depth)	455X239X821.5mm	455X239X739.6mm
Weight	110kg	98kg
Cooling Method	Intelligent Air Cooling	Intelligent Air Cooling
