261KWH LIQUID COOLING OUTDOOR BESS

INTELLIGENT ENERGY STORAGE

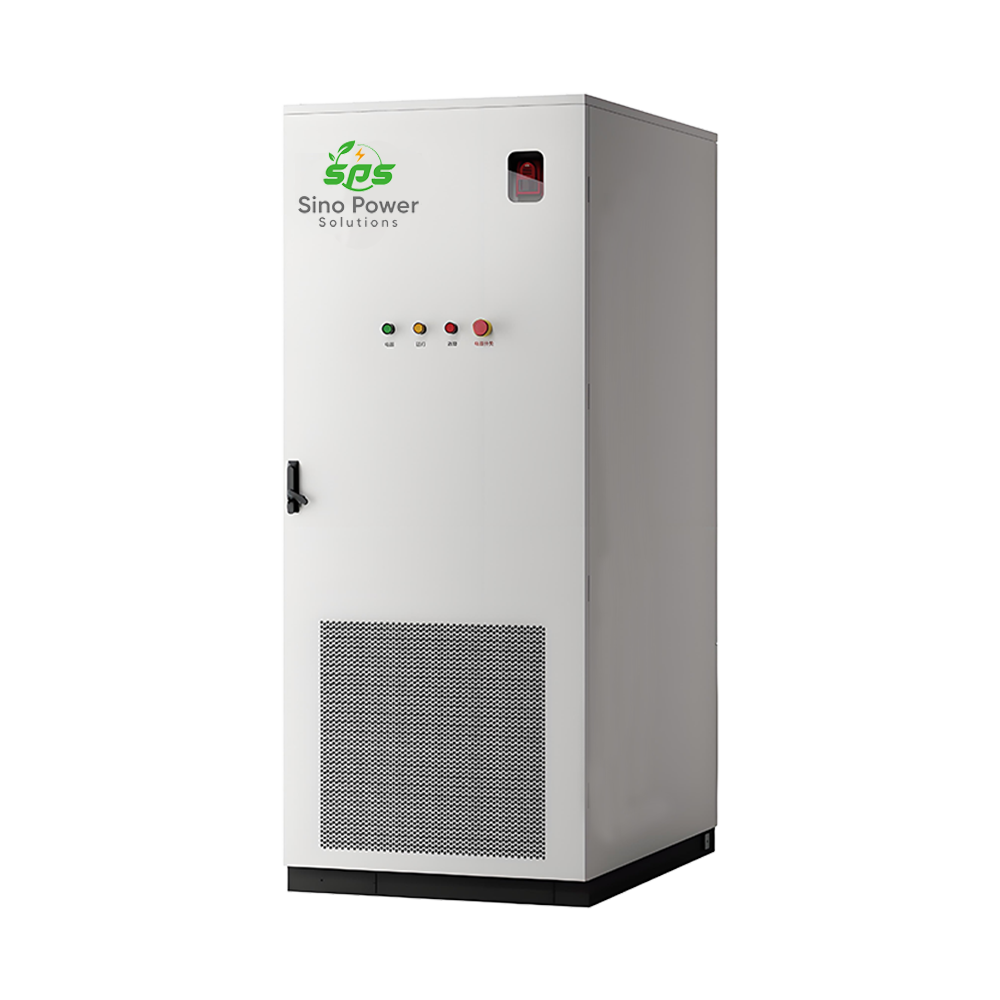

261KWH LIQUID COOLING OUTDOOR BESS

Product Introduction

Product Image

Quick access

Product Brochure

Product Manual

Product Model	KE-5100-135kW/261kWh
Cell Type	314Ah (Lithium Iron Phosphate Prismatic Aluminum Case)
Battery Configuration Capacity (kWh)	261
Battery Pack Configuration	260S1P
Maximum Voltage Range (Vdc)	650 - 1000
Depth of Discharge	5% - 95% DOD
Cycle Life	≥8000 cycles (25°C, 0.5C, 70% EOL)
Grid - connection Method	3W+N/3W
Rated Output Voltage (Vac)	400
Rated Output Power (kW)	135
Maximum Output Power (kVA)	162
Rated Frequency (Hz)	50
Power Factor	-1 - +1
AC Metering	Three - phase four - wire, bidirectional metering; 0.5 class
Dimensions (Width x Height x Depth)	100023951380mm
Weight	Approx. 2700kg
Operating Ambient Temperature (°C)	-20 - 55 (derating above 45°C)
Operating Ambient Humidity (%RH)	0 - 90 (no condensation)
Noise (dB)	≤75
Altitude (m)	≤2000; derating for 2000 - 4000m
Thermal Management Form	Intelligent liquid cooling + dehumidification
Fire Protection Form	Cabinet - level gas fire extinguishing + PACK - level gas fire extinguishing + Sense - based Smoke Detector
Communication Interface	Ethernet
Human - machine Interaction	Industrial Display Screen
Protection Class	IP54
Charge - discharge Switching Time (ms)	<100
Maximum System Efficiency	≥90%
Off - grid Function	Optional
