1500V STEP-UP CSS INTEGRATED WITH PCS

INTELLIGENT ENERGY STORAGE

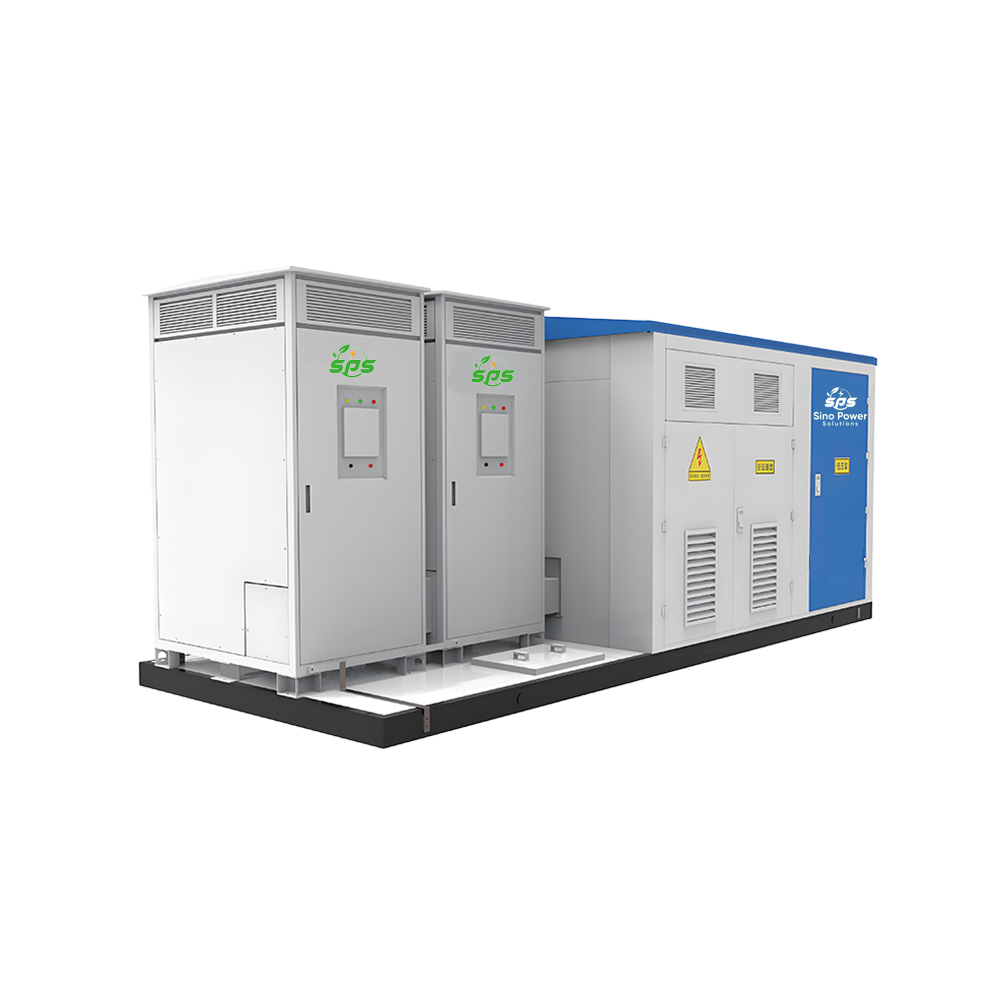

1500V STEP-UP CSS INTEGRATED WITH PCS

Product Introduction

Product Image

Quick access

Product Brochure

Product Manual

Product Model	KE - 5120 - 2.5MW/35kV	KE - 5120 - 3.45MW/35kV
DC - side Parameters
Maximum DC Voltage	1500V	1500V
DC Voltage Range	1000 - 1500V	1000 - 1500V
Maximum DC Current	1403A*2	1936A*2
Number of DC Input Paths	2	2
AC - side Parameters (Grid - connected)
AC Output Power	2500kVA@45°C/2750kVA@30°C	3450kVA@45°C/3795kVA@30°C
Maximum AC Current	2099A@45°C/2302A@30°C	2886A@45°C/3175A@30°C
Rated AC Voltage	690V	690V
AC Voltage Range	586.5 - 759V	586.5 - 759V
Rated Grid Frequency	50Hz/60Hz	50Hz/60Hz
AC Current Harmonics	<1.5% (rated power)	<1.5% (rated power)
Power Factor	>0.99 (>20% load)	>0.99 (>20% load)
Reactive Power Adjustable Range	-1 ~ +1	-1 ~ +1
AC - side Parameters (Off - grid)
Rated AC Voltage	690V	690V
AC Voltage Range	586.5 - 759V	586.5 - 759V
AC Voltage Harmonics	<3% (linear load)	<3% (linear load)
Unbalanced Load Capacity	1 0 0%	1 0 0%
Rated Output Frequency	50Hz/60Hz	50Hz/60Hz
Transformer Parameters
Isolation Method	Dry - type Transformer	Dry - type Transformer
Rated Power of Transformer	2500kVA	3450kVA
Maximum Power of Transformer	2750kVA	3795kVA
LV/MV Voltage	0.69/35kV	0.69/35kV
System Parameters
Maximum Efficiency	99%	99%
Protection Class	IP55 (Inverter)/IP54 (Others)	IP55 (Inverter)/IP54 (Others)
Operating Temperature Range	-35 ~ +60°C (>45°C derated operation)	-35 ~ +60°C (>45°C derated operation)
Allowable Humidity Range	0 ~ 1 0 0% (no condensation)	0 ~ 1 0 0% (no condensation)
Altitude	5000m (>2000m derated)	5000m (>2000m derated)
Cooling Method	Intelligent Forced Air Cooling	Intelligent Forced Air Cooling
Communication Interface	RS485, CAN, Ethernet	RS485, CAN, Ethernet
Dimension (Width×Height×Depth)	720030003000mm	720030003000mm
Weight	Approx. 15000kg	Approx. 15000kg
