MODULAR PCS

INTELLIGENT ENERGY STORAGE

MODULAR PCS

Product Introduction

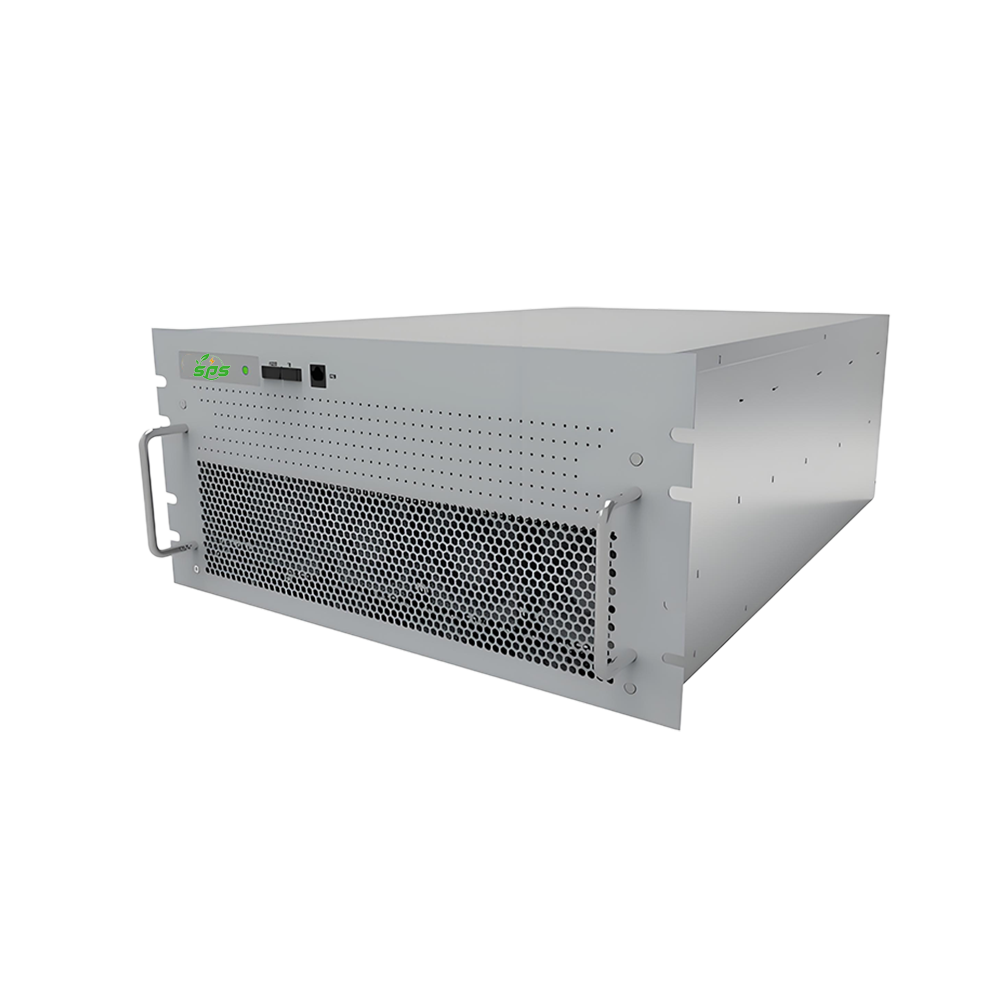

Product Image

Quick access

Product Brochure

Product Manual

Product Model	KE-5122-100K
DC Parameters
DC Voltage Range	650 - 900V
Maximum DC Voltage	900V
Maximum DC Current	175A
Maximum DC Power	120kW
AC Grid - connected Parameters
AC Rated Power	100kW
Maximum AC Power	120kVA
Overload Capacity	1.1 times (long - term), 1.2 times (1min)
AC Rated Current	145A
THDI	≤3% (rated power)
Rated Grid Voltage	230/400Vac (-20% - +15%)
Frequency Range	50Hz/60Hz - 3.5Hz/+2.5Hz
Power Factor	-1~+1
DC Component	<0.5%
Charge - discharge Switching Time	<100ms
AC Off - grid Parameters
AC Off - grid Voltage	230/400Vac
Output Frequency	50/60Hz
THDu	≤2% (linear load)
Unbalanced Load Capacity	1 0 0%
Grid - off - grid Switching Time	10ms (with STS)
System Parameters
Maximum Efficiency	98.5%
Wiring Method	3*N+PE
Communication Interfaces	RS485, CAN/IO, DI/DO interfaces
Protection Class	IP20
Cooling Method	Intelligent Air Cooling
Operating Temperature	-30 - 60°C (>45°C derated)
Relative Humidity	0 - 95% (no condensation)
Altitude	3000m (>2000m derated)
Noise	<75dB
Dimensions (Width x Height x Depth)	653×440×220mm
Weight	Approx. 48kg
