836KWH LIQUID COOLING OUTDOOR BESS

INTELLIGENT ENERGY STORAGE

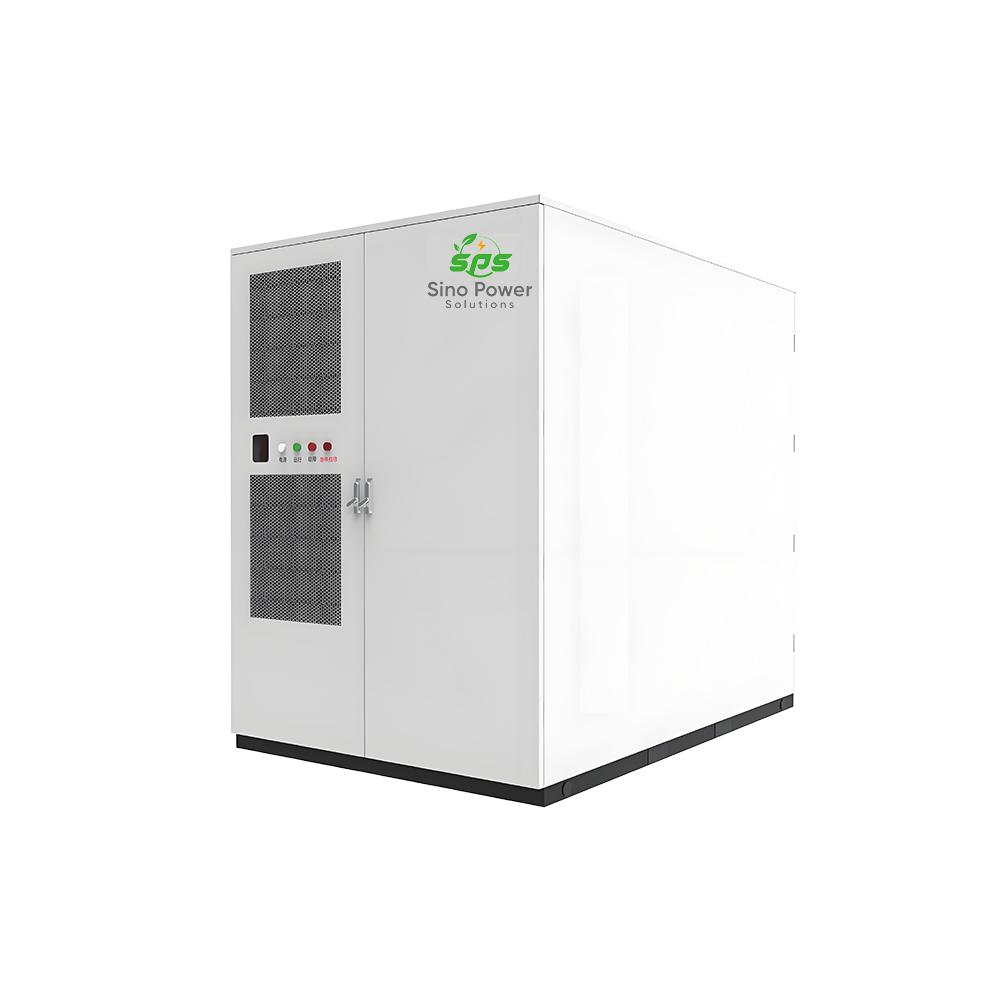

836KWH LIQUID COOLING OUTDOOR BESS

Product Introduction

Product Image

Quick access

Product Brochure

Product Manual

Product Model	KE-5100-430kW/836kWh
Cell Type	314Ah (Lithium Iron Phosphate Prismatic Aluminum Case)
Battery Configuration Capacity (kWh)	836
Battery Composition Method	416S 2P
Maximum Voltage Range (Vdc)	1050 - 1500
Depth of Discharge	5% - 95% DOD
Cycle Life	≥8000 cycles (25°C, 0.5C, 70% EOL)
Grid - connection Access Method	3P + PE
Rated Output Voltage (Vac)	690
Rated Output Power (kW)	430
Maximum Output Power (kVA)	473
Rated Frequency (Hz)	50/60Hz±5Hz
Power Factor	-1 - +1
AC Metering	Three - phase three - wire, bidirectional metering; 0.5S class
Dimensions (Width x Height x Depth)	186828452668mm
Weight	8000kg
Operating Ambient Temperature (°C)	-20°C - 55°C (derating above 45°C)
Operating Ambient Humidity (%RH)	0 - 90 (no condensation)
Noise (dB)	≤75
Altitude (m)	≤4000; derating for 3000 - 4000m
Thermal Management Form	PCS intelligent air cooling, PACK liquid cooling + dehumidification
Fire Protection Form	Cabinet - level gas fire extinguishing + PACK - level gas fire extinguishing (total flooding agent optional)
Communication Interface	Ethernet
Human - machine Interaction	Industrial display screen
Protection Class	IP66 (inverter) / IP54 (others)
Charge - discharge Switching Time (ms)	<100
Maximum System Efficiency	≥90%
Off - grid Function	Optional
