MODULAR PCS

INTELLIGENT ENERGY STORAGE

MODULAR PCS

Product Introduction

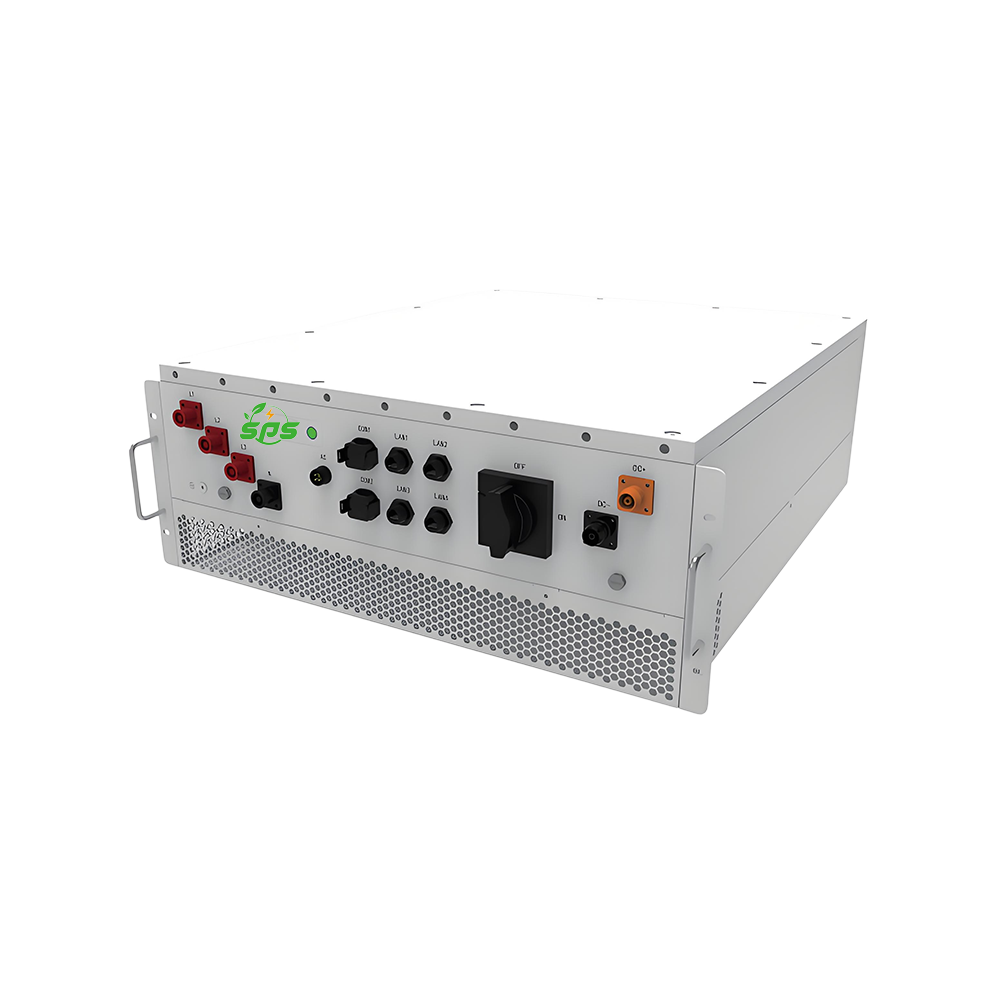

Product Image

Quick access

Product Brochure

Product Manual

Product Model	KE-5122-215K-H
DC Parameters
DC Voltage Range	1000 - 1500V
Maximum DC Current	236.5A
Maximum DC Power	236.5kW
Voltage and Current Regulation Accuracy	<1%
AC Grid - connected Parameters
AC Rated Power	215kVA
Maximum AC Power	236.5kVA
AC Rated Current	180A
Maximum AC Current	198A
AC Current Distortion Rate	<3%
Rated Grid Voltage	690V (-15% - +10%)
Frequency Range	50Hz/60Hz±5Hz
Power Factor	-1~+1
DC Component	<0.5%
Charge - discharge Switching Time	Default <100ms, fastest <20ms
AC Off - grid Parameters
Maximum Efficiency	99%
Wiring Method	3 - N+PE/3 - PE
Protection Class	IP66
Cooling Method	Intelligent Air Cooling
Operating Temperature	-40°C - 60°C (no derating at 45°C)
Relative Humidity	0 - 1 0 0% (no condensation)
Noise	75dB
System Parameters
Altitude	4000m (>3000m derated)
DI/DO Quantity	5/3
Communication Interfaces	RS485/CAN/ETH
Protocol	Modbus/GOOSE
Dimensions	910×820×275mm
Weight	Approx. 100kg
