Home

Products

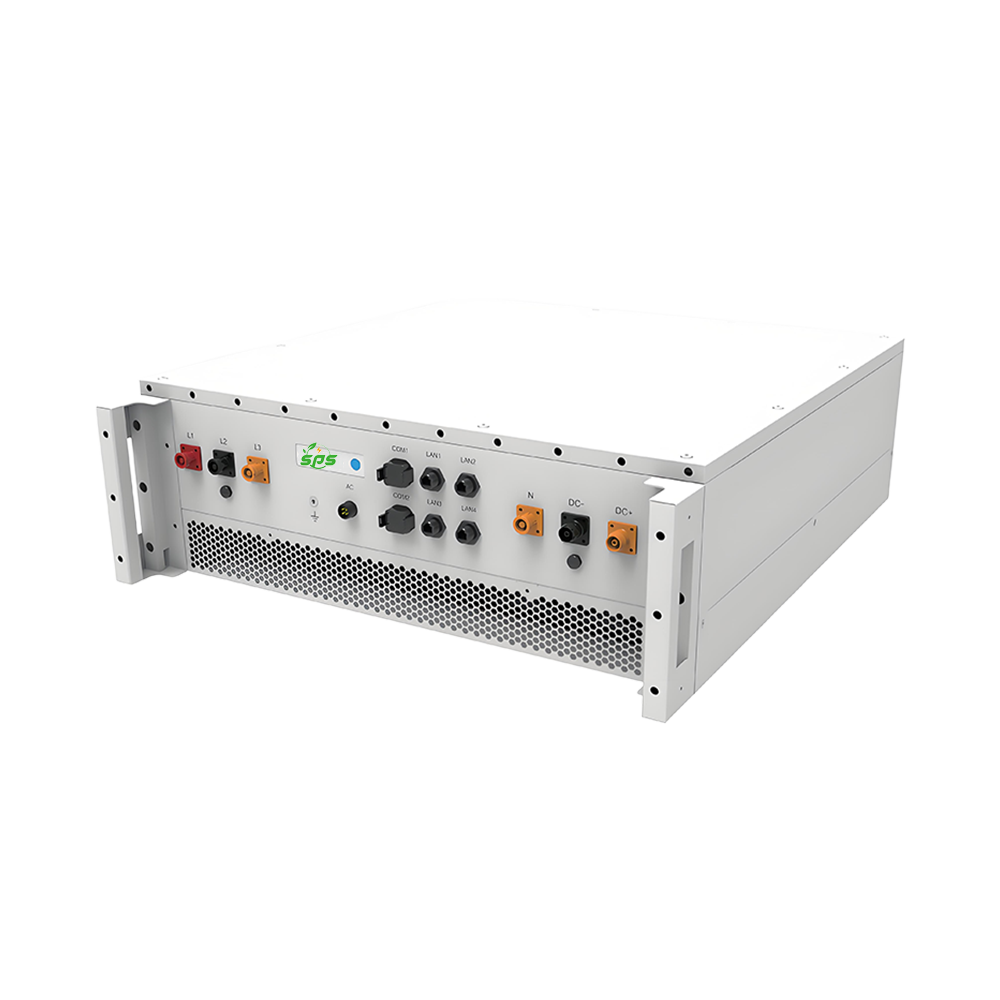

MODULAR PCS

INTELLIGENT ENERGY STORAGE

MODULAR PCS

Product Introduction

Product Image

Quick access

Product Brochure

Product Manual

Product Model	KE-5122-135K-P
DC Parameters
DC Voltage Range	650 - 1000V
Maximum DC Current	228A
Maximum DC Power	148.5kW
Voltage Regulation and Current Stabilization Accuracy	<1%
AC Grid - connected Parameters
AC Rated Power	135kW
Maximum AC Power	148.5kVA
AC Rated Current	195A
Maximum AC Current	215A
AC Current Distortion Rate	<3%
Rated Grid Voltage	400V (-20% - +15%)
Frequency Range	50Hz/60Hz±5Hz
Power Factor	-1~+1
DC Component	<0.5%
Charge - discharge Switching Time	Default <100ms, fastest <20ms
AC Off - grid Parameters
AC Off - grid Voltage	230/400Vac
Output Frequency	50/60Hz
THDu	≤3% (linear load)
Unbalanced Load Capacity	1 0 0%
System Parameters
Maximum Efficiency	≥98.5%
Wiring Method	3 - N+PE/3 - PE
Protection Class	IP65
Cooling Method	Intelligent Air Cooling
Operating Temperature	-30 - 60°C (>45°C derated)
Noise	<75dB
Altitude	4000m (>3000m derated)
DI/DO Quantity	5/4
Relative Humidity	0 - 1 0 0% (no condensation)
Communication Interfaces	RS485/CAN/ETH (optional)
Protocol	Modbus/Goose (optional)
Dimensions	910×700×280mm
Weight	Approx. 90kg
